Reference for Available Detailed Labels

Abril Montes
Updated

To help you identify the ideal label for your client's operation, we provide you with the different formats available for detailed labels.

If you need an additional label, we can provide a quote for the necessary changes to the format so that, once you approve it, our team can develop it for you. Do not hesitate to contact our customer support team, who will be happy to assist you in this process.

This article covers the following topics:

Other articles of interest:

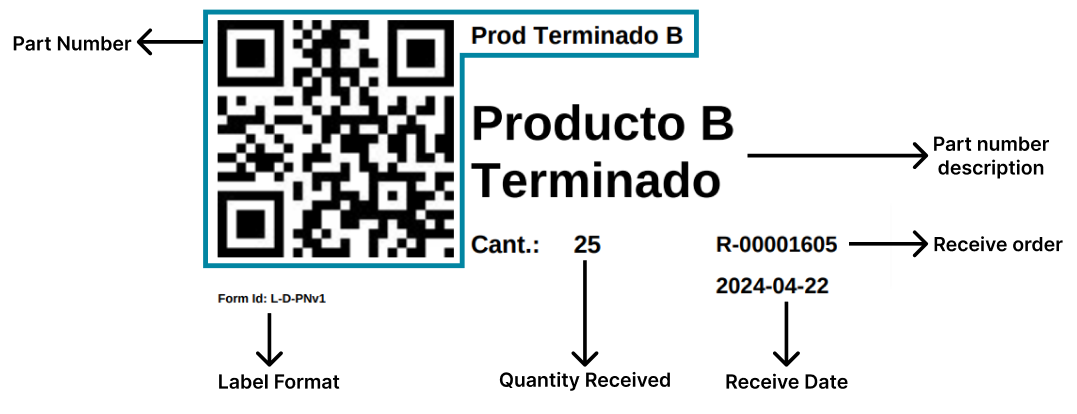

Label with part number description and receipt date

Label dimensions: 4 x 2 inches.

Form id: L-D-PNv1

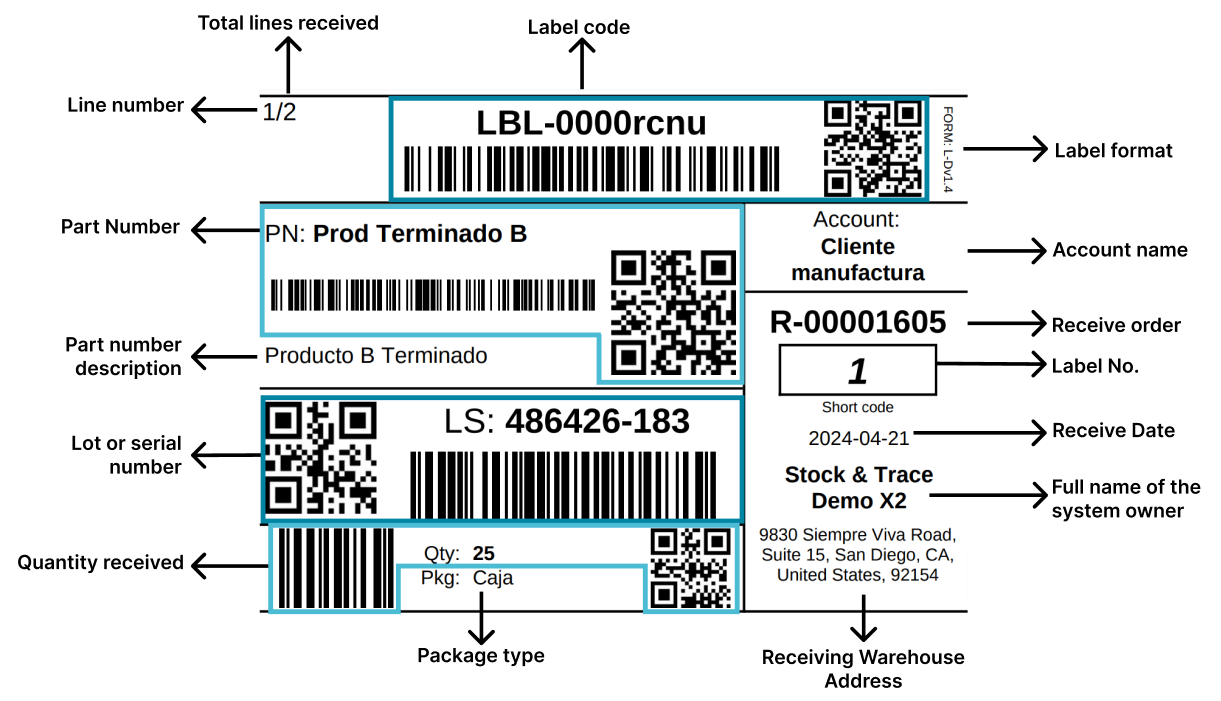

Default label

Label dimensions: 4 x 3 inches.

Form Id: L-Dv1.4

This label allows your warehouse teams to scan the inventory's lot, unlike the label with the alternative number code.

Note: This is the same format used by default by the system.

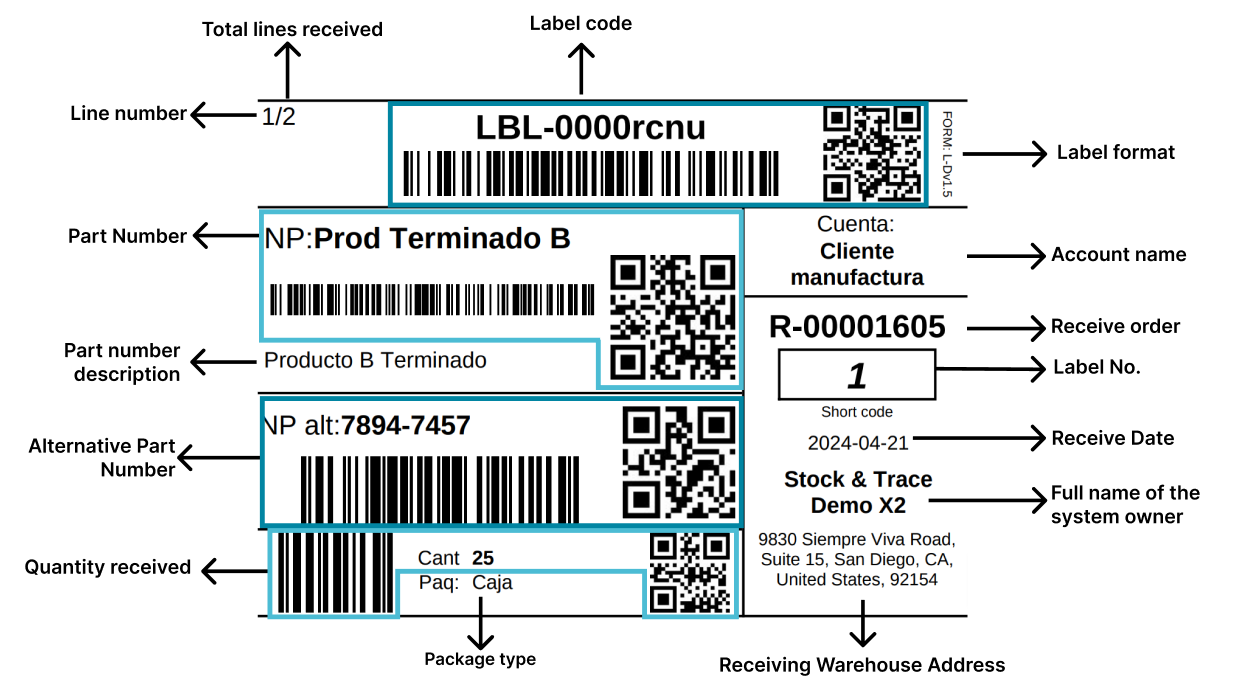

Label with alternative number code

Label dimensions: 4 x 3 inches.

Form Id: L-Dv1.5

This label has the difference of allowing your warehouse teams to scan the inventory's alternative part number.

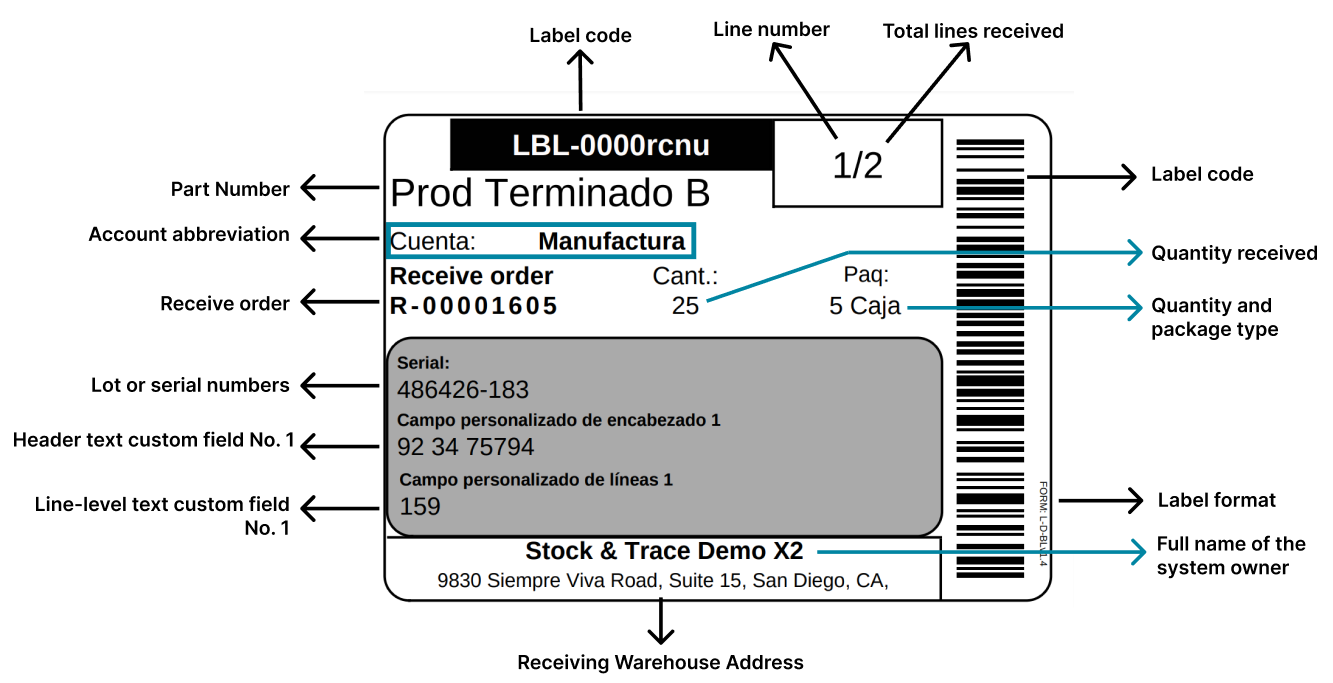

Label v1.4

Label dimensions: 4 x 3 inches.

Form Id: L-D-BLv1.4

This label has the difference of showing custom text field number 1 at the header and line levels of the Receive order.

The product lot or the serials will be displayed if the part numbers are configured that way. For the latter scenario, it is recommended only when you have 1 to 3 serials per package, although this will mainly depend on the length of each serial. If you need to handle more serials, it is suggested to use the Multi-serial Label.

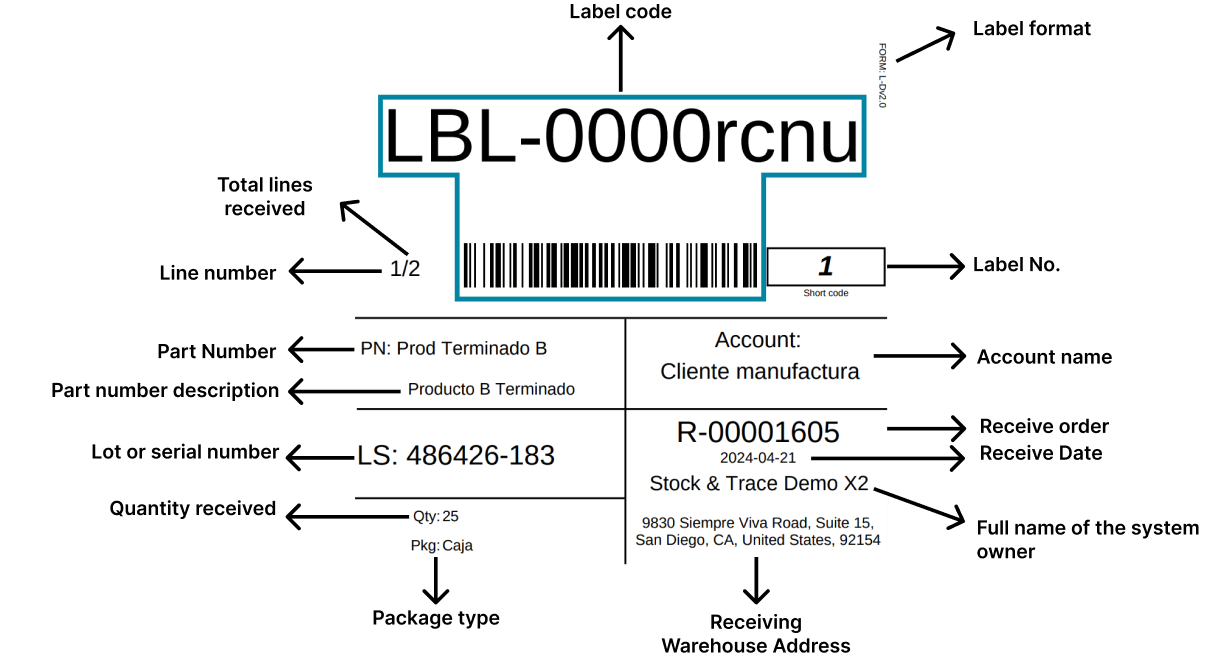

Label with only barcode v2

Label dimensions: 4 x 4 inches.

Form Id: L-Dv2.0

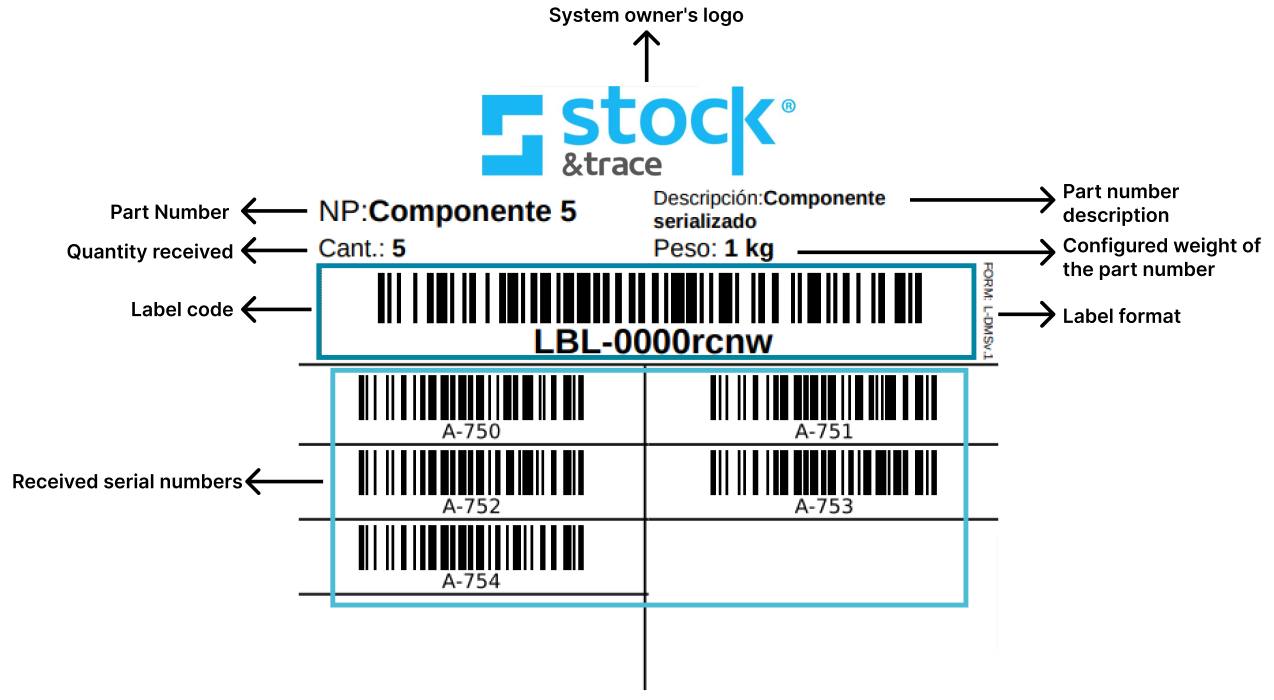

Multi-serial Label

Label dimensions: 4 x 6 inches.

Form Id: L-DMSv.1

It is recommended when all part numbers have the 'link inventory quantity with serials' setting active.
